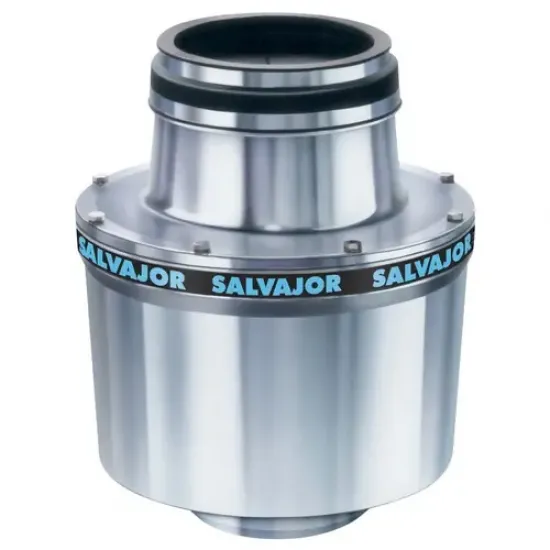

1 HP Sink Mount Disposer Assembly 3.5" Collar w/ MSS Control

Item: 1 HP Sink Mount Disposer Assembly 3.5" Collar w/ MSS ControlModel:100-SA-3-MSSFeatures Permanent molded from heat treated aluminum alloy. Protects the motor from damage by water. Provides longer motor life, quiet operation and shock absorbing. Provides maximum efficiency and longer life. Extra thick rubber mounting adapter and drain outlet isolates sound and eliminates vibration. MOUNTING – Rubber adaptor above grind chamber and rubber drain outlet isolates sound and eliminates vibration. No metal to metal contact. EXTERIOR HOUSING – Permanent molded from heat treated, corrosion resistant aluminum alloy then computer machined to a smooth polished finish. Paint free. SHREDDER – 8 inch diameter, machined high strength, wear resistant hardened carbide alloy. ROTOR – 8 inch diameter with 2 cutter bars, machined high strength, wear resistant hardened carbide alloy. MOTOR – 1 HP totally enclosed. Water cooled for efficiency and longer life. Built-in manual reset thermal overload protection. Available in 208 volts or 115/230 volts, 60 cycle, 1 phase and 208-230/460 volts, 60 cycle, 3 phase. Push button MSS control 3-1/2" sink collar Non-reversing Made in the U.S.A., UL, CSA Please note the mounting bracket for the control panel is not included but can be ordered separately

Features:

• Permanent molded from heat treated aluminum alloy.
• Protects the motor from damage by water.
• Provides longer motor life, quiet operation and shock absorbing.
• Provides maximum efficiency and longer life.
• Extra thick rubber mounting adapter and drain outlet isolates sound and eliminates vibration.
• MOUNTING – Rubber adaptor above grind chamber and rubber drain outlet isolates sound and eliminates vibration. No metal to metal contact.
• EXTERIOR HOUSING – Permanent molded from heat treated, corrosion resistant aluminum alloy then computer machined to a smooth polished finish. Paint free.
• SHREDDER – 8 inch diameter, machined high strength, wear resistant hardened carbide alloy.
• ROTOR – 8 inch diameter with 2 cutter bars, machined high strength, wear resistant hardened carbide alloy.
• MOTOR – 1 HP totally enclosed. Water cooled for efficiency and longer life. Built-in manual reset thermal overload protection. Available in 208 volts or 115/230 volts, 60 cycle, 1 phase and 208-230/460 volts, 60 cycle, 3 phase.
• Push button MSS control
• 3-1/2" sink collar
• Non-reversing
• Made in the U.S.A., UL, CSA
• Please note the mounting bracket for the control panel is not included but can be ordered separately
• 1 Year warranty from date of installation or 15 months from the date of shipment from the factory, whichever occurs first
